The model is suitable for the production of pure steam disinfection and water for injection at the same time. Disinfection and water preparation can operate independently at the same time without interfering with each other. It is a kind of production equipment for water for injection and pure steam, which can operate in two ways at the same time, and has no mutual influence on the production of water and steam.
Specification | Steam Pressure （MPa） | Distilled Water | Pure Steam | Overall Dimension L×W×H(mm) | |||||
WFI(L/H) | Raw Steam(kg/h) | PW | PS(kg/h) | Temperature(℃) | Pressure（MPa） | PW(L/H) | |||
500-5 | 0.4 | 500 | 115 | 580 | 100 | 143 | 0.3 | 100 | 1700*850*2650 |
1000-6 | 0.4 | 1000 | 225 | 1150 | 200 | 143 | 0.3 | 200 | 2200*1000*3150 |
1500-6 | 0.4 | 1500 | 290 | 1670 | 300 | 143 | 0.3 | 300 | 3200*1100*3750 |
2000-6 | 0.4 | 2000 | 450 | 2250 | 400 | 143 | 0.3 | 400 | 3600*1200*3950 |
3000-6 | 0.4 | 3000 | 670 | 3350 | 600 | 143 | 0.3 | 600 | 3900*1300*4250 |
4000-6 | 0.4 | 4000 | 900 | 4450 | 800 | 143 | 0.3 | 800 | 4300*1400*4450 |
5000-6 | 0.4 | 5000 | 1130 | 5550 | 1000 | 143 | 0.3 | 1000 | 4500*1500*4750 |

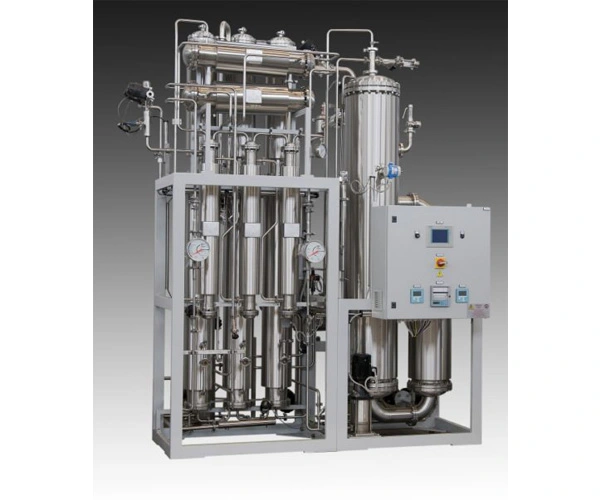

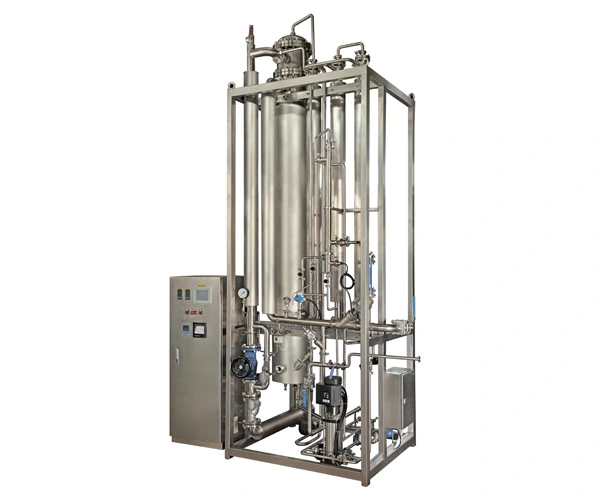

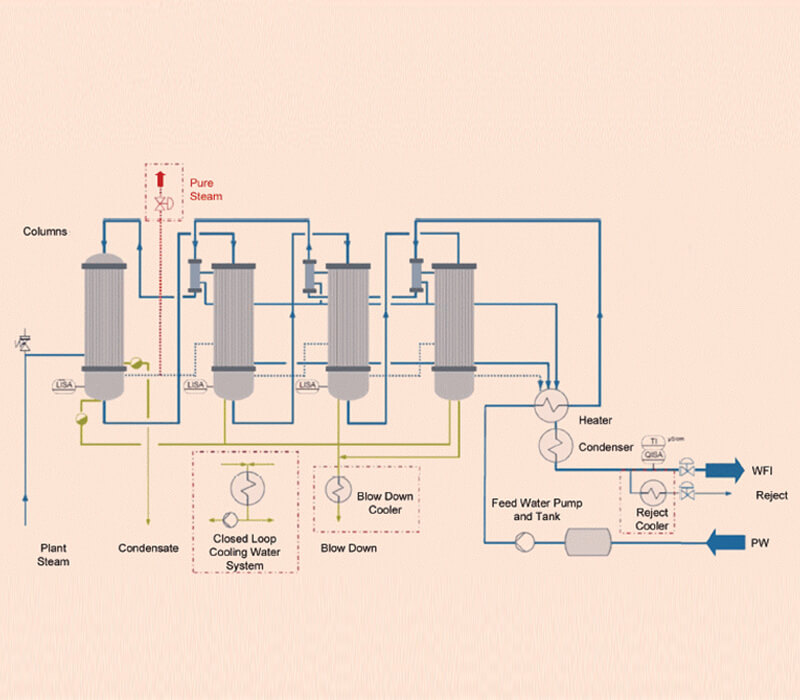

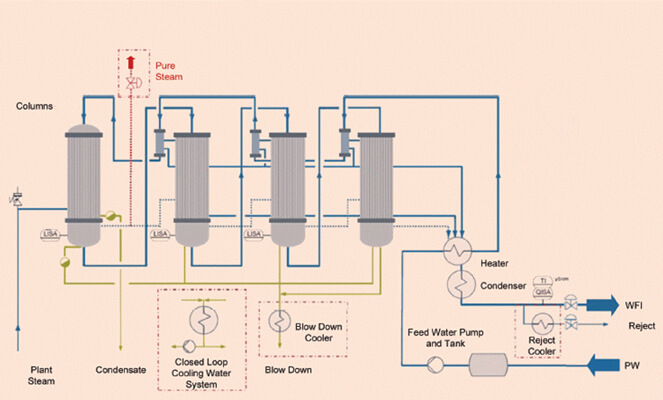

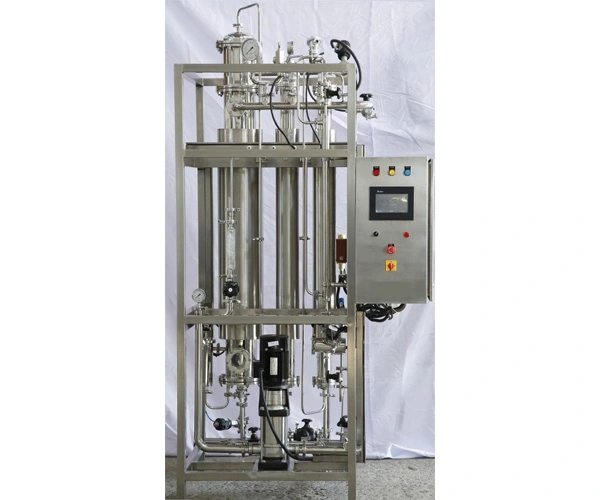

The two in one model combines a pure steam generator and a multi effect distiller into a system. Therefore, pure steam and water for injection can be supplied simultaneously. The two in one model is the most flexible device, which can meet small or intermittent WFI requirements while generating pure steam. On the other hand, for small or intermittent pure steam demand, it can also produce WFI at the same time.
The increasing demand for flexibility requires new technical solutions that can simultaneously produce pure steam and WFI. BIOCELL's unique two in one design allows almost any amount of pure steam to be generated simultaneously with WFI distillation.
Reduced investment.
Reduced installation space & cost.
Reduced validation.
Easy handling.
Pure Steam pressure regulation.
